End of buffer while requesting certificate in PKIAAS

Nitrokeys HSM
1

I have a root CA on a HSM2 with m-of-n authentication. I could successfully sign an intermediate CA requested by Vault, but could not sign an other intermediate CA requested by ADCS.

Steps to reproduce

I did the following:

  • authenticate onto the CA token with the quorum
  • in the navbar, click on “Home”, then "Request Certificate (PKCS#10)
  • in the dropdown, choose the CA and click “Start Request”
  • browse for the desired csr and click “Upload”

Expected results

Intermediate CA parameters are shown for approval

Actual results

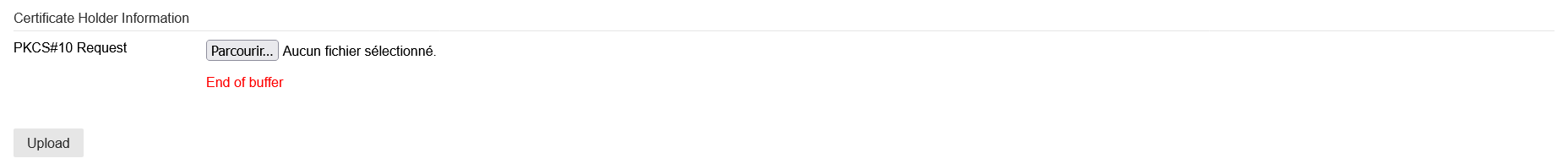

An error message is displayed: “End of buffer”

image1856×194 3.11 KB

Docker logs:

789404517 [qtp1526298704-19] INFO  pki-as-a-service.ui.CAGUI - GET /paas
789405873 [qtp1526298704-12] INFO  pki-as-a-service.ui.CAGUI - GET /paas/sr/new?process=PKCS10ServiceRequest
789435518 [qtp1526298704-16] INFO  pki-as-a-service.ui.CAGUI - POST /paas/sr/new?process=PKCS10ServiceRequest
789435552 [qtp1526298704-19] INFO  pki-as-a-service.ui.CAGUI - GET /paas/sr/9
789441235 [qtp1526298704-12] INFO  pki-as-a-service.ui.CAGUI - POST /paas/sr/9
789441242 [qtp1526298704-12] INFO  pki-as-a-service.ui.ServiceRequestController - postProcessAction action.pkcs10.upload
789441246 [qtp1526298704-12] ERROR pki-as-a-service.processes.PKCS10RequestModel - End of buffer

Is there something I can do to sign .csr emitted by ADCS?

2

Found how to workaround. Both steps are required:

  • replace “NEW CERTIFICATE” with “CERTIFICATE”
  • set file format to unix
3

The next version will support both headers.
